Top Quality Cooler Cooler Fan - XIKOO new water evaporative industrial air conditioner with compressor – XIKOO Detail:

water evaporative air conditioner is also called low consumption air conditioner and Evaporative condensing air conditioning. It combined working method of water cooling, air cooling and compressor. Firstly, the external machine cool the circulating water through cooling pad water evaporative. After the water temperature drops to normal, it flows through the heat exchange system of the internal machine (at this time, the compressor Has been operated, the refrigerant has been compressed into a high temperature and high pressure state), which takes away most of the heat of the high temperature refrigerant to form a normal temperature refrigerant. The normal temperature refrigerant is throttled by the expansion valve and becomes low temperature and low pressure refrigerant, which is transported to the evaporator of the internal machine to blows out cold wind;

The circulating water that has cooled the high-temperature and high-pressure refrigerant is transported to outdoor unit by a water pump. At the same time, it flows through the evaporative cooling pad, thereby turning the high-temperature water into normal temperature water and flowing through the room again. The machine cools down the refrigerant under high temperature and high pressure, and continuously circulates the operation to maximize the energy efficiency ratio, thereby reducing energy consumption.

工用原理1

Evaporative power-saving air-conditioning unit is composed of compressor, condenser, expansion valve, evaporator, cooling pad and so on.



Water evaporative industrial low consumption air conditioner parameter:

water evaporative industrial air conditioner
Model SYLD-16 Cool water flow(m3/h) 3.8
Rated Voltage 380V~50Hz Cool water pipe diameter DN25
Refrigerating capacity 33.5 kW pipe air delivery 20-30M
Energy consumption 4.6 kW Max. airflow(m3/h) 6500
COP 4.39 Allowed overpressure of side exhaust/suction 2.8 MPa/1.5MPa
Rated current 11 A Allowed pressure of Max./Min 2.8 MPa/1.5MPa
Rated power 4.6 kW Noise 65dB(A)
Maximum operating voltage 13A Refrigerant type/dosage R22/3500g
Maximum operating power 6.5kW Dimension 1180*740*680mm
Rated cooler water Tem. returned/ out 32℃/37℃ Weight 155 kg



water evaporative industrial air conditioner
Model SYLD-32 Cool water flow(m3/h) 8
Rated Voltage 380V~50Hz Cool water pipe diameter DN40
Refrigerating capacity 67 kW pipe air delivery 30-40M
Energy consumption 9.2kW Max. airflow(m3/h) 12000
COP 4.39 Allowed overpressure of side exhaust/suction 2.8 MPa/1.5MPa
Rated current 21 A Allowed pressure of Max./Min 2.8 MPa/1.5MPa
Rated power 9.2kW Noise 68dB(A)
Maximum operating voltage 36A Refrigerant type/dosage R22/3500g*2
Maximum operating power 13kW Dimension 1180*1400*680mm
Rated cooler water Tem. returned/ out 32℃/37℃ Weight 280kg





Features of water evaporative air conditioner:

1.Energy-saving electricity-saving

Electricity consumption is 5kw/h to cool a 200 square meter space, it just is 1/4 energy consumption of traditional air conditioner. No need for external copper pipe, lower cost.



2. Bigger airflow and bring purified cool air. Cool the air down more quickly, and the cooling efficiency is higher.



3. longer cool air delivery and bigger area to cover



4 Cool the air fast, Decrease temperature quickly.



5. Widely application, one piece can cover 200M2, suitable for  product exhibition halls, school canteens, restaurants, workshops and workshops, exhibitions, farm and other places.

微信图片_20210430162538    微信图片_20210430162542

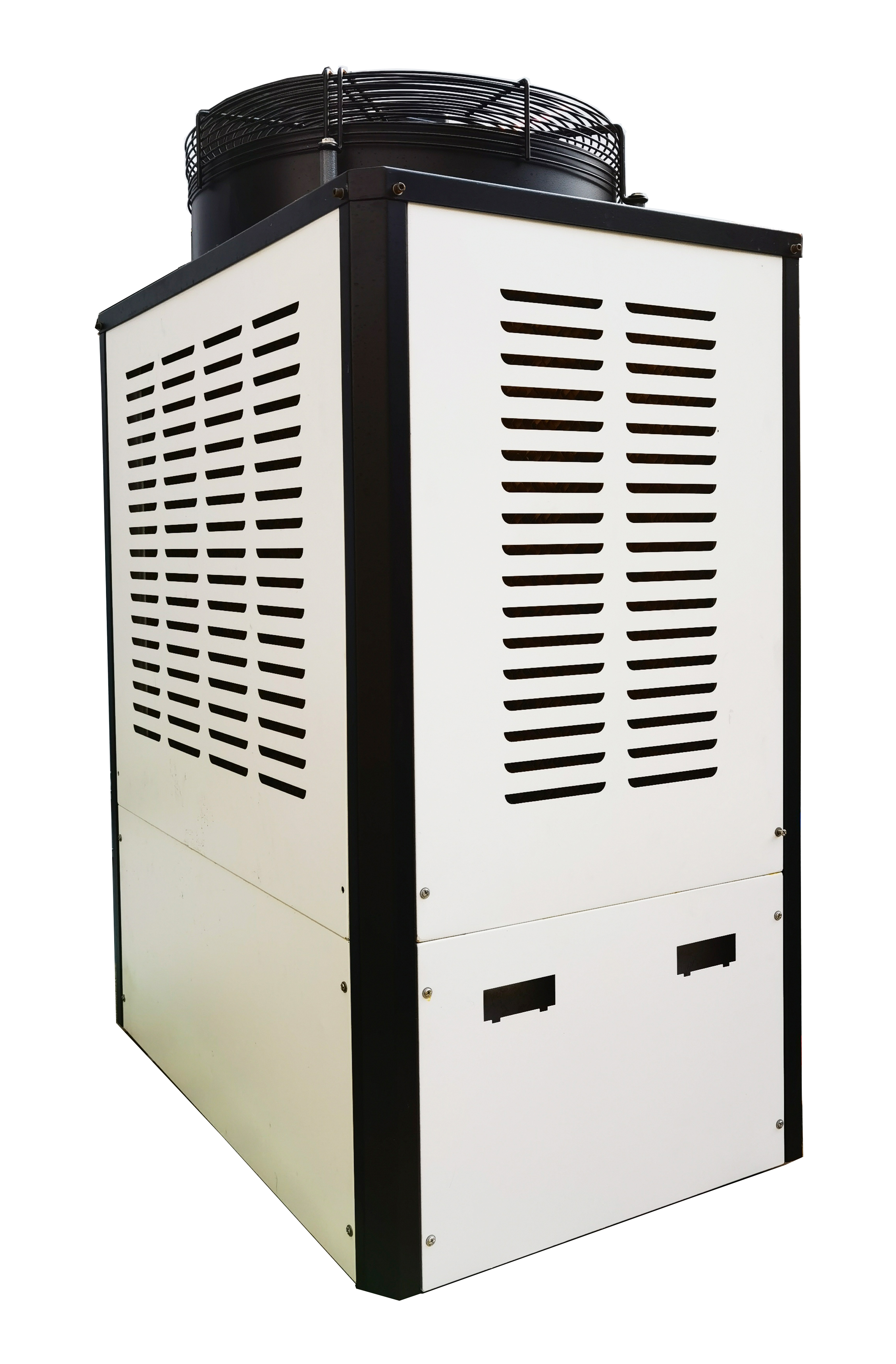

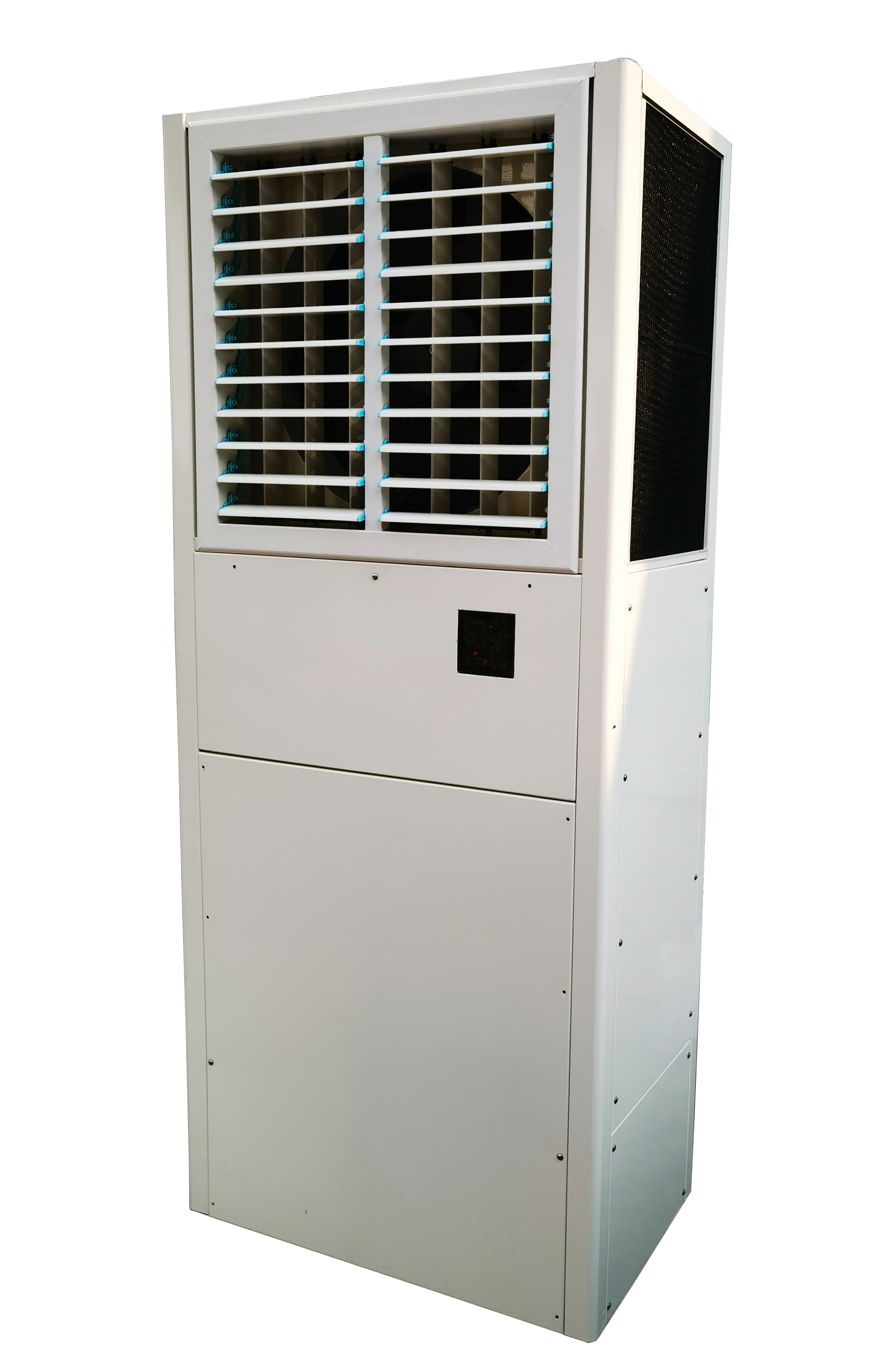

Product detail pictures:

Top Quality Cooler Cooler Fan - XIKOO new water evaporative industrial air conditioner with compressor – XIKOO detail pictures

Top Quality Cooler Cooler Fan - XIKOO new water evaporative industrial air conditioner with compressor – XIKOO detail pictures

Top Quality Cooler Cooler Fan - XIKOO new water evaporative industrial air conditioner with compressor – XIKOO detail pictures
